SPECS :

1. CPU : Amlogic S905X4 64bit quad core ARM® Cortex™ A55 CPU

2 : GPU : G31™ MP2 GPU processor

3: 4GB RAM 32GB ROM , 4GB RAM 64GB ROM

4 Support 2.4g 5g dual wifi

5.Support BT4.1

6 Support 100M Lan Ethernet

7.Support 8K

There are 2 Options for X96max + Ultra

A: 4GB+32GB+ Android 11 + 2.4G/5G WIFI + BT + 100M ethernet

B: 4GB+64GB+ Android 11 + 2.4G/5G WIFI + BT + 100M ethernet

Basic parameters
CPU	Chipset	Amlogic S905X4
	Architecture	Quad Core ARM Cortex A55
GPU	Chipset	ARM Mali-G31 MP2
	Architecture	OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 support
RAM	Capacity	2GB/4GB Optional
ROM	Capacity	16GB/32GB/64GB Optional
External storage	USB Storage Devices	USB2.0, USB3.0 Support
	Micro SD card	Supported
Software
Operating system	OS Version	Android 11
	Language	Multi-Language
Multimedia	Video	Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4x1080P 60fps
		Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
		Video/Picture Decoding
		VP9 Profile-2 up to 8Kx4K 24 fps
		H.265 HEVC MP-10 L5.1 up to 8Kx4K 24 fps
		AVS2-P2 Profile up to 8Kx4K 24 fps
		MPEG-4 ASP L5 up to 1080P 60fps (ISO-14496)
		WMV/VC-1 SP/MP/AP up to 1080P 60fps
		AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P 60fps
		MPEG-2 MP/HL up to 1080P 60fps (ISO-13818)
		MPEG-1 MP/HL up to 1080P 60fps (ISO-11172
		RealVideo 8/9/10 up to 1080P 60fps
		Multiple language and multiple format sub-title video support
		MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918
		Supports JPEG thumbnail, scaling, rotation and transition effects
		Supports .mkv,.wmv,.mpg, .mpeg, .dat, .avi, .mov, .iso, .mp4, .rm and *.jpg file formats
	Audio	Supports MP3, AAC, WMA, FLAC, Ogg.
	Image	HD JPEG,BMP,GIF,PNG,TIF
Network service
Wi-Fi	Type	Support WiFi IEEE 802.11 b / g / n / ac
	Frequency	Support 2.4G and 5G
	Antenna Type	Two external antennas
BT	BT	Support BT4.X

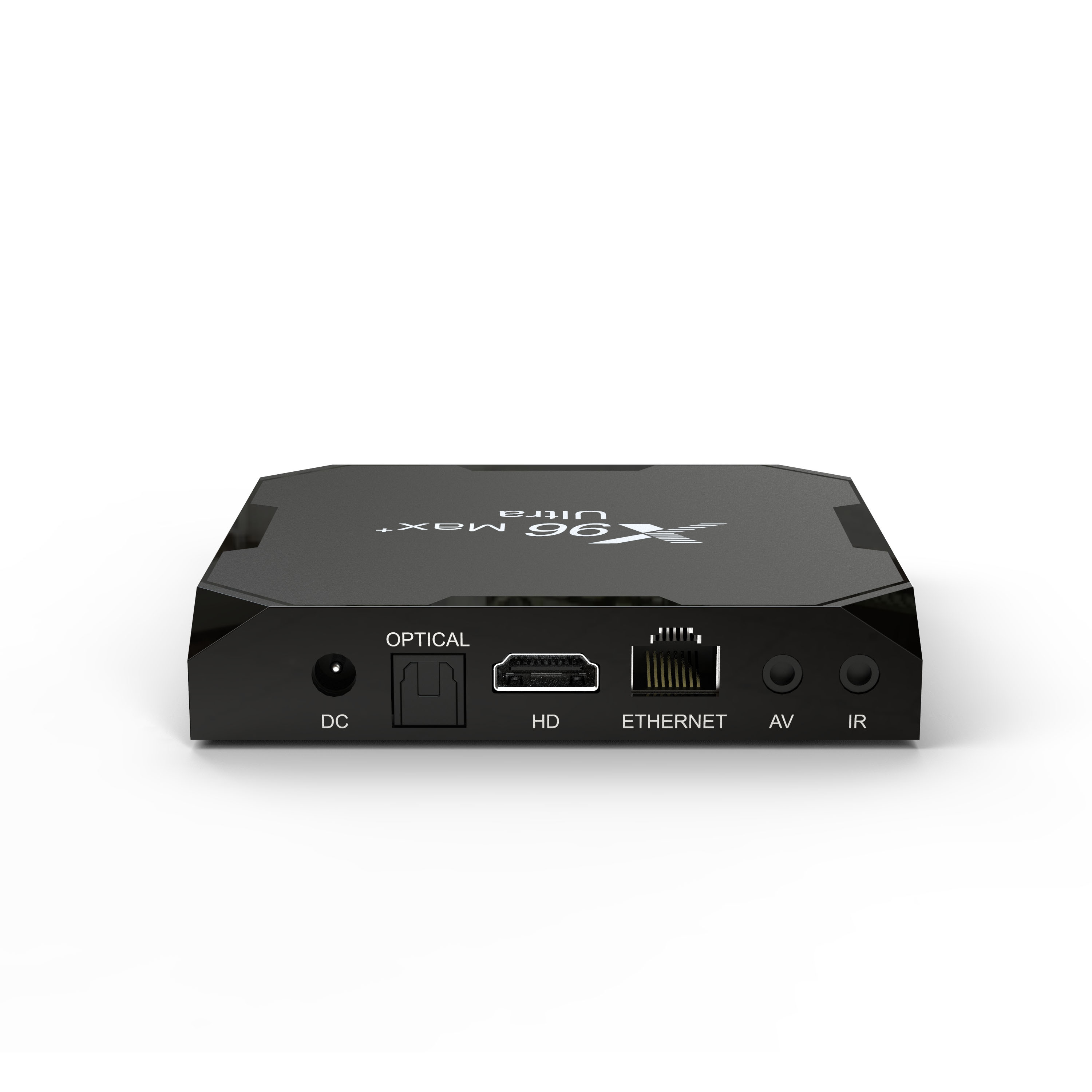

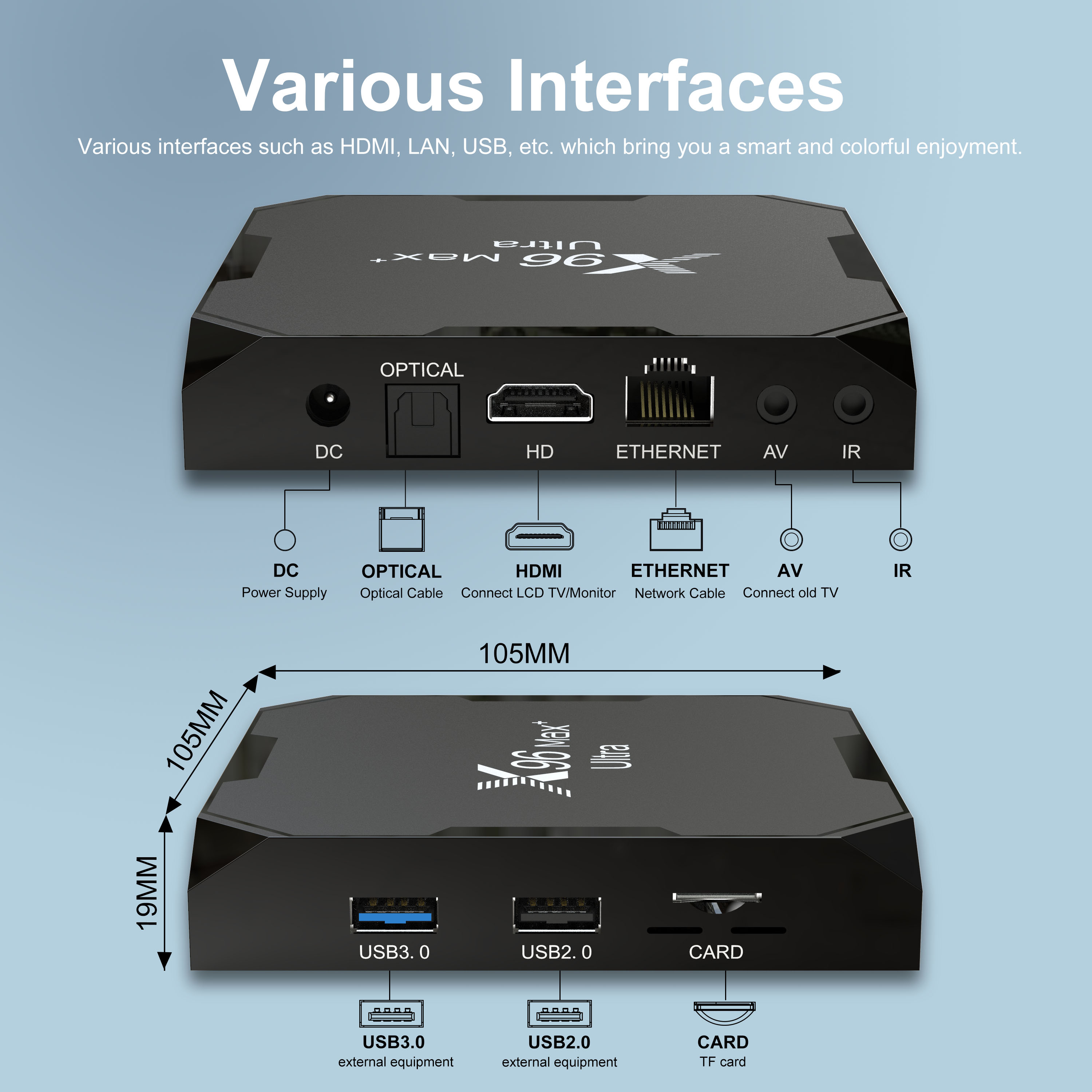

Interface
Charge	DC connector	DC IN(5V/2A)
Video output	HDMI	4K*2K UHD Output, HDMI 1.4/2.0
IR Reciver	3.5mm Earphone jack	Remote Reciver Connect
Micro SD	External memory	Support

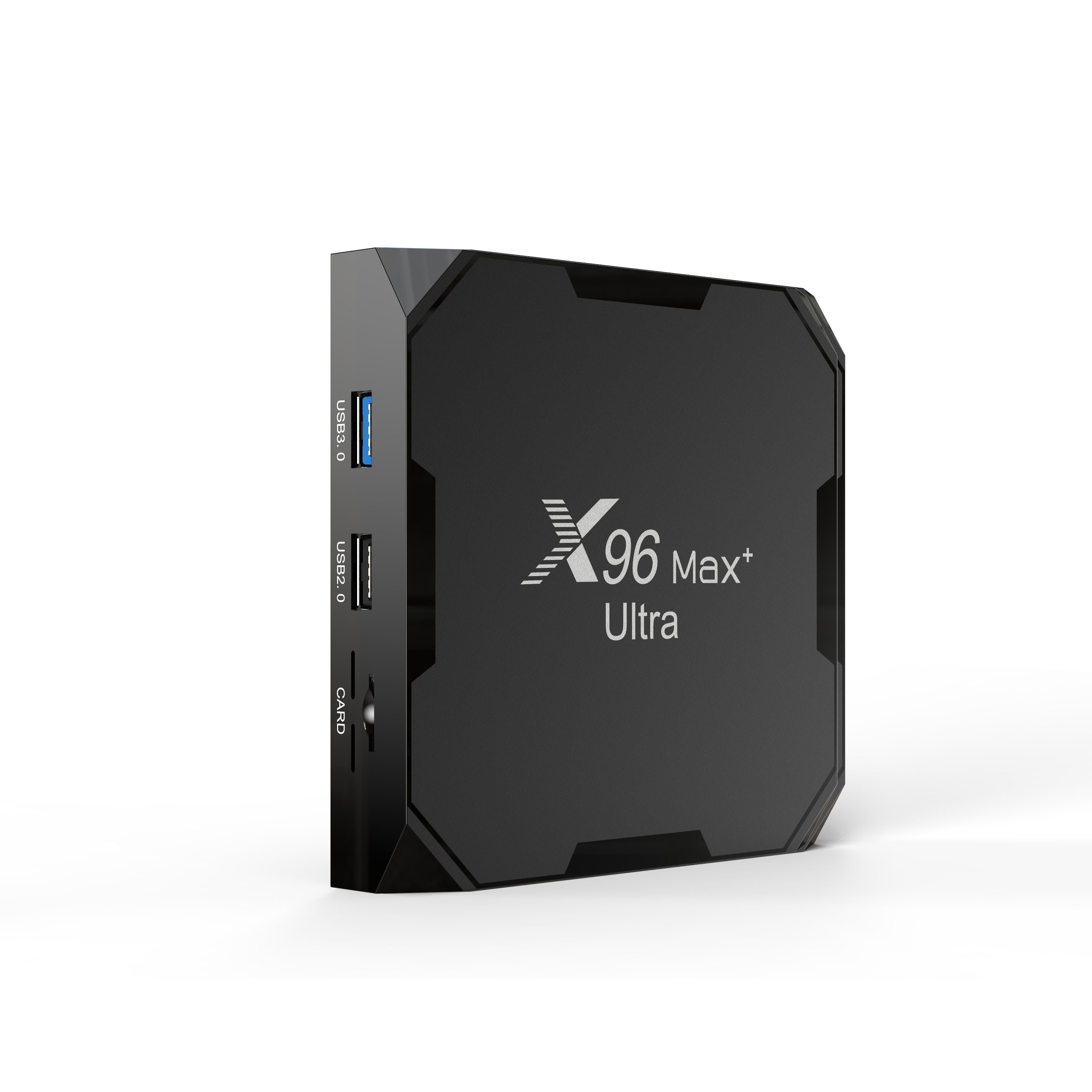

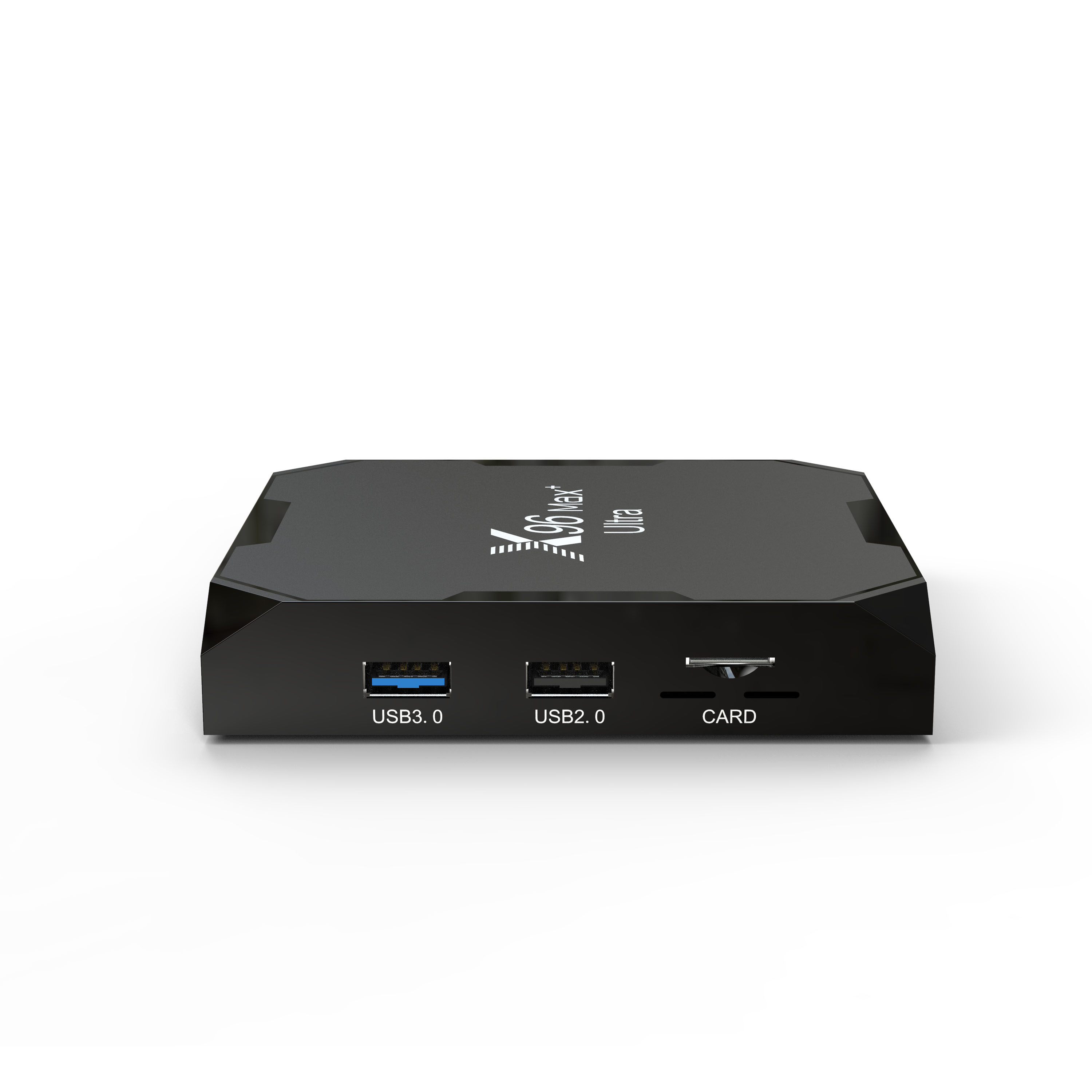

USB port	USB host	1* USB3.0; 1*USB2.0 normal type
Ethernet	Ethernet	100M Ethernet
